Android Web service Access Tutorial

Updated tutorial for new versions >> http://codeoncloud.blogspot.com/2013/06/android-java-soap-web-service-access.html

This simple example demonstrates how we can access a java web service  from Android application.
We can't connect Android 3.0 and after versions to the internet in the main thread. So we have to start new thread. In this tutorial I'm going to demonstrate how we can access a simple java web service  by starting new thread. I have tested this on Android 4.0.3 platform.

Following is the sample java code for web service class. Deploy this web service on Tomcat server at local host. To implement this web service follow these posts.
1. Create java web service in Eclipse using Axis2 (Part 01)
2. Create java web service in Eclipse using Axis2 (Part 02)

package com.android.ws;
public class PrintMsg {
 public String sayHello(){
           return "Hello Chathura";
        }
}

Here is the code for Android application to invoke deployed web service.

import org.ksoap2.SoapEnvelope;
import org.ksoap2.serialization.SoapObject;
import org.ksoap2.serialization.SoapPrimitive;
import org.ksoap2.serialization.SoapSerializationEnvelope;
import org.ksoap2.transport.HttpTransportSE;

import android.widget.TextView;
import android.app.Activity;
import android.os.Bundle;

public class AndroidWSClientActivity extends Activity {

    private static final String SOAP_ACTION = "http://ws.android.com/sayHello";
    private static final String METHOD_NAME = "sayHello";
    private static final String NAMESPACE = "http://ws.android.com/";
    private static final String URL = "http://175.157.229.119:8080/AndroidWSTest/services/PrintMsg?wsdl";
    /** Called when the activity is first created. */
    @Override
    public void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.main);

    Thread networkThread = new Thread() {
    @Override
    public void run() {
      try {
         SoapObject request = new SoapObject(NAMESPACE, METHOD_NAME);
         SoapSerializationEnvelope envelope = new SoapSerializationEnvelope(SoapEnvelope.VER11);
         envelope.setOutputSoapObject(request);

         HttpTransportSE ht = new HttpTransportSE(URL);
         ht.call(SOAP_ACTION, envelope);
         final  SoapPrimitive response = (SoapPrimitive)envelope.getResponse();
         final String str = response.toString();

         runOnUiThread (new Runnable(){
     public void run() {
         TextView result;
         result = (TextView)findViewById(R.id.textView1);//Text view id is textView1
         result.setText(str);
           }
       });
      }
     catch (Exception e) {
         e.printStackTrace();
     }
    }
  };
  networkThread.start();
  }
 }
}

Note:

SOAP_ACTION in line 13 is "NAMESPACE/METHOD_NAME".

METHOD_NAME in line 14 is WSDL operation. You can find something like <wsdl:operation name="sayHello"> in your WSDL sayHello is METHOD_NAME here.

NAMESPACE in line 15 is targetNamespace in the WSDL. Replace that & add a "/" to the end .

URL in line 16 The URL of WSDL file. In my case it is http://175.157.229.119:8080
/AndroidWSTest/services/PrintMsg?wsdl
blue colored is the ip of the server replace it with your ip & red colored is the port number.

Make appropriate changes according to your WSDL. I think it is easy to find those things if you open WSDL from a web browser. For more details look the image :



Add Internet permission to Androidanifest.xml file.(Look highlighted line)












}

Run the application using Emulator.

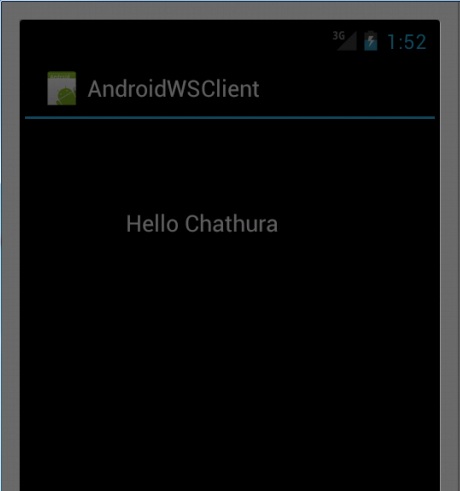

Result :

You can download updated project here here

Password :cloud



If you find this post helpful don't forget to leave a comment. Your comments always encourage me!
